FSI Tide System







CT Systems CT-Tide

The CT-TIDE is a compact and rugged tide gauge with a built in touchscreen LCD, data storage and telemetry. Recorded tidal data will be displayed on the screen, recorded in the unit and transmitted over either long range UHF or industrial Wi-Fi.

Its features include:

  1. A rugged water-proof design with IP-65 IO connections
  2. 9-36V wide input power supply
  3. Stainless steel pressure sensor with 50m cable
  4. 0 to 1 bar measurement standard
  5. Remotely programmable and accessible

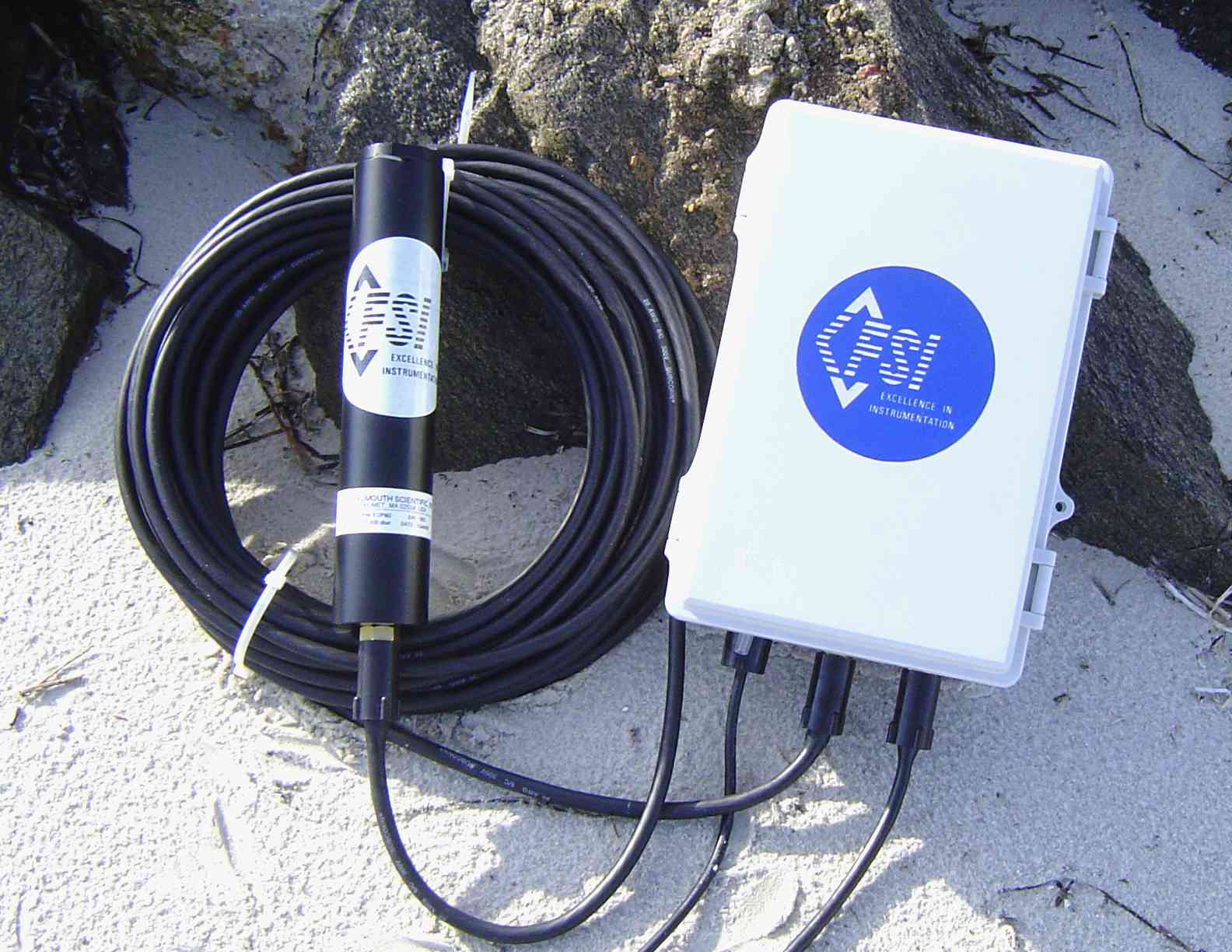

High-Accuracy Self-Contained Tide Monitoring System

The Falmouth Scientific, Inc. Tide Monitoring System is a complete tide monitoring system for moorings and other long-duration fixed-site deployments. The pressure module is a precision strain-gauge pressure sensor for measuring water level; barometric pressure compensation is provided by a sensor mounted in the system’s surface enclosure, which also incorporates rechargeable battery and system communications. A 20-meter cable connects the underwater and surface enclosure. Non- corroding materials are used to ensure long sensor life with minimal maintenance. An optional solar charger allows for long-term, unattended operation.

Data is recorded in the system’s 256MB internal memory and can be output locally in real-time via RS-232 (optional RS-485) or reported remotely via RF (radio, cell) or satellite telemetry.

Image result for fsi tide gauge







1-Dimensional Wave and Tide Meter

High-Speed, High-Resolution Wave Height and Tide Measurement

Enhanced Design, Specifications, Performance

The FSI WAVE-TIDE-PLUS is an economical wave and tide monitor, combining a highly stable pressure sensor and state-of-the-art electronics to achieve unprecedented levels of accuracy and stability.
Sampling rate is selectable (1 to 5 Hz), which enables the user to acquire accurate point-spectra of waves. Pressure sensor output can also be integrated to obtain water level measurements unaffected by wave action. With 2 GB of on board flash data memory, the WAVE- TIDE-PLUS can retain the large amounts of data required for highly detailed wave characterization.

The WAVE-TIDE-PLUS is available with an optional Barometric Sensor. This option comes complete with surface housing, reinforced 30 meter cable (or user-specified length) and NEMA weather-proof enclosure with standard marine-grade connectors. The NEMA enclosure houses the barometric sensor with space
for two 6V lantern or 7.5 AHr gel cell batteries. Other options include a solar panel charger and radio data telemetry sub-systems.
